Reinforcement Location with the PM8000 Pro

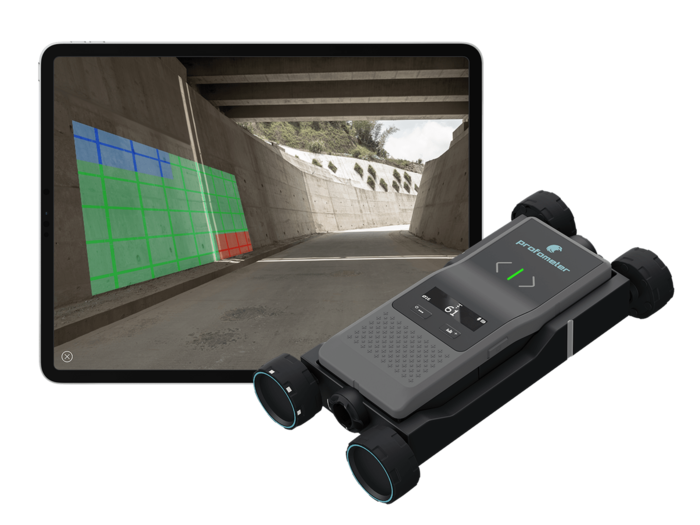

Locating reinforcement accurately is essential for safe drilling, coring, anchoring, and structural assessment. This service provides a non‑destructive mapping of reinforcement using the PM8000 Pro, a pulse‑induction device designed to detect steel within concrete with precision. The method identifies the position, spacing, and layout of reinforcement without damaging the structure, making it suitable for both existing buildings and new construction.
Scope of the reinforcement scan
Detection of reinforcement in slabs, walls, beams, and columns
Mapping of bar positions and spacing
Identification of single‑layer and multi‑layer reinforcement
Locating reinforcement before drilling, cutting, or installing anchors
Verification of reinforcement layout in critical structural zones
How the scan is performed

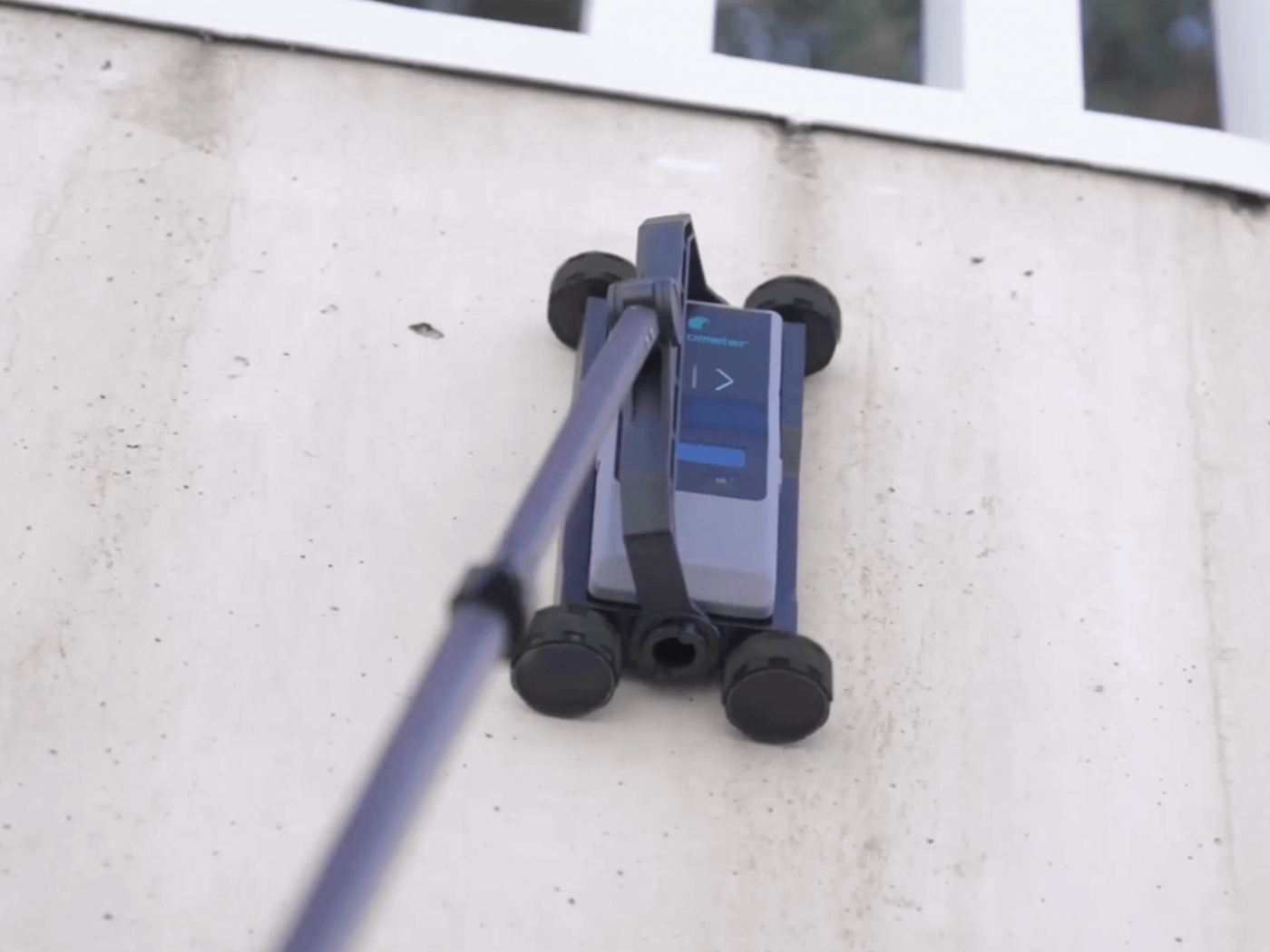

The PM8000 Pro is moved across the concrete surface to detect metallic elements using pulse‑induction technology. The device provides real‑time feedback on bar location and arrangement, allowing precise marking of reinforcement directly on the structure. This approach prevents accidental hits during construction work and supports reliable structural evaluation.
Benefits for construction and renovation
Non‑destructive and fast reinforcement mapping
Increased safety for drilling and coring operations
Clearer visualization of reinforcement layout
Reduced risk of structural damage
Suitable for concrete elements of various thicknesses and geometries
Documentation and workflow
After the on‑site scan, findings are summarized in a structured report that includes reinforcement layout, identified bar positions, and recommendations for safe execution of planned works. The service is billed on an hourly basis, covering scanning, evaluation, and documentation.
